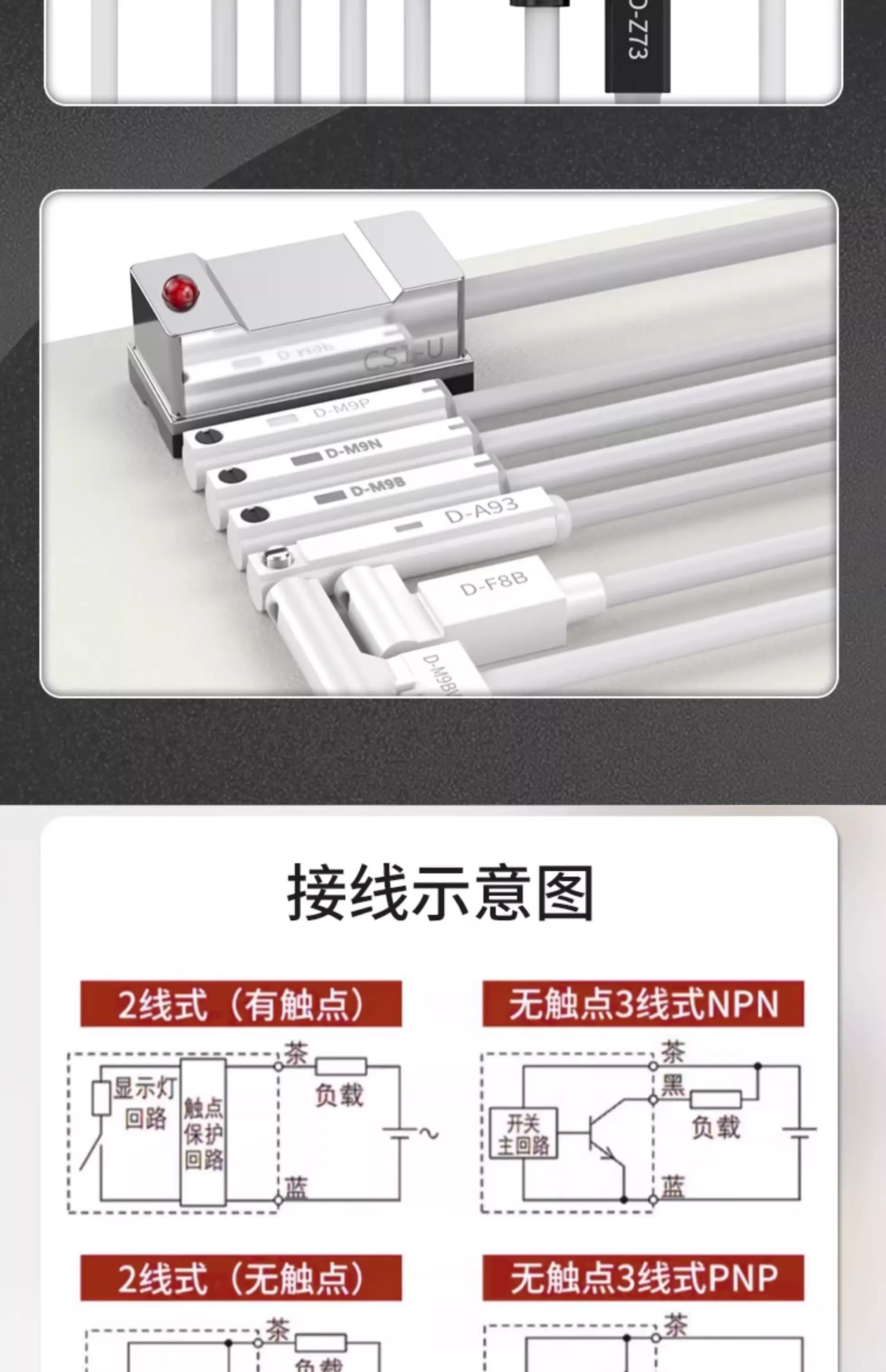

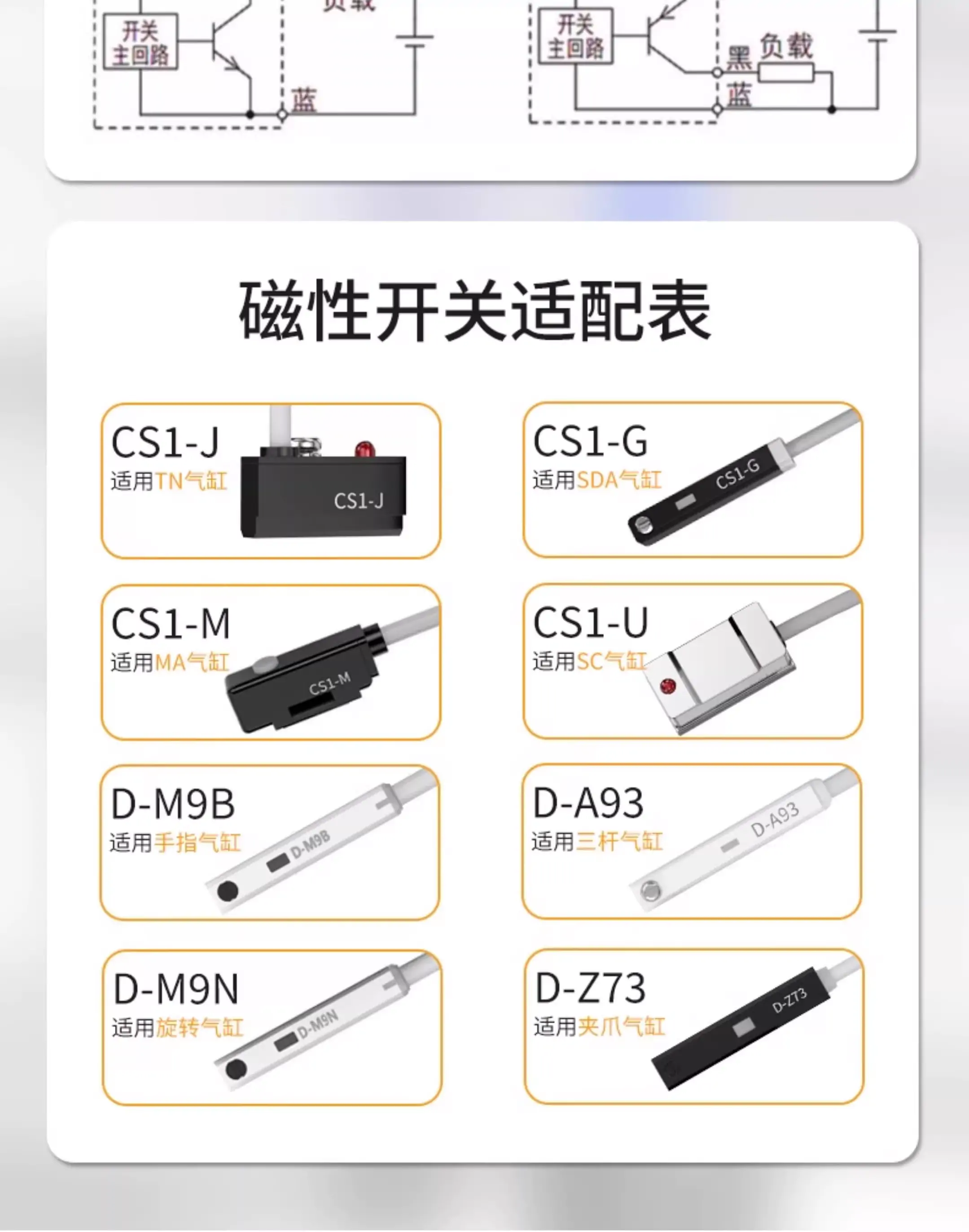

SEEHONG磁性開關YIDA-07R 150075 150355 180216 150325 150095
SEEHONG磁性開關YIDA-MC01系列有：YIDA-MC01R,YIDA-MC01RD,YIDA-MC01N,YIDA-MC01P;
SEEHONG磁性開關YIDA-MC02系列有：YIDA-MC02R,YIDA-MC02RD, YIDA-MC02N,YIDA-MC02P;
SEEHONG磁性開關YIDA-MC03系列有：YIDA-MC03R,YIDA-MC03RD,YIDA-MC03N,YIDA-MC03P;
SEEHONG磁性開關YIDA-MC04系列有：YIDA-MC04R,YIDA-MC04RD,YIDA-MC04N,YIDA-MC04P;
SEEHONG磁性開關YIDA-MC05系列有：YIDA-MC05R,YIDA-MC05RD,YIDA-MC05N,YIDA-MC05P;
SEEHONG磁性開關YIDA-MC06系列有：YIDA-MC06R,YIDA-MC06RD,YIDA-MC06N,YIDA-MC06P;
SEEHONG磁性開關YIDA-MC07系列有：YIDA-MC07R,YIDA-MC07RD,YIDA-MC07N,YIDA-MC07P;
SEEHONG磁性開關YIDA-MC08系列有：YIDA-MC08R,YIDA-MC08RD,YIDA-MC08N,YIDA-MC08P;
SEEHONG磁性開關YIDA-MC09系列有：YIDA-MC09R,YIDA-MC09RD,YIDA-MC09N,YIDA-MC09P;
SEEHONG磁性開關YIDA-MC10系列有：YIDA-MC10R,YIDA-MC10RD,YIDA-MC10N,YIDA-MC10P;
SEEHONG磁性開關YIDA-MC11系列有：YIDA-MC11R,YIDA-MC11RD,YIDA-MC11N,YIDA-MC11P;
SEEHONG磁性開關YIDA-MC12系列有：YIDA-MC12R,YIDA-MC12RD,YIDA-MC12N,YIDA-MC12P;
SEEHONG磁性開關YIDA-MC13系列有：YIDA-MC13R,YIDA-MC13RD,YIDA-MC13N,YIDA-MC13P;
SEEHONG磁性開關YIDA-MC14系列有：YIDA-MC14R,YIDA-MC04RD,YIDA-MC14N,YIDA-MC14P;
SEEHONG磁性開關YIDA-MC15系列有：YIDA-MC15R,YIDA-MC15RD,YIDA-MC15N,YIDA-MC15P;
SEEHONG磁性開關YIDA-MC16系列有：YIDA-MC16R,YIDA-MC16RD,YIDA-MC16N,YIDA-MC16P;
SEEHONG磁性開關YIDA-MC17系列有：YIDA-MC17R,YIDA-MC17RD,YIDA-MC17N,YIDA-MC17P;
SEEHONG磁性開關YIDA-MC18系列有：YIDA-MC18R,YIDA-MC18RD,YIDA-MC18N,YIDA-MC18P;
SEEHONG磁性開關YIDA-MC19系列有：YIDA-MC19R,YIDA-MC19RD,YIDA-MC19N,YIDA-MC19P;
SEEHONG磁性開關YIDA-MC20系列有：YIDA-MC20R,YIDA-MC20RD,YIDA-MC20N,YIDA-MC20P;
SEEHONG磁性開關YIDA-MC21系列有：YIDA-MC21R,YIDA-MC21RD,YIDA-MC21N,YIDA-MC21P;
SEEHONG磁性開關YIDA-MC22系列有：YIDA-MC22R,YIDA-MC22RD,YIDA-MC22N,YIDA-MC22P;
SEEHONG磁性開關YIDA-MC23系列有：YIDA-MC23R,YIDA-MC23RD,YIDA-MC23N,YIDA-MC23P;
SEEHONG磁性開關YIDA-MC24系列有：YIDA-MC24R,YIDA-MC24RD,YIDA-MC24N,YIDA-MC24P;
SEEHONG磁性開關YIDA-MC25系列有：YIDA-MC25R,YIDA-MC25RD,YIDA-MC25N,YIDA-MC25P;
SEEHONG磁性開關YIDA-MC26系列有：YIDA-MC26R,YIDA-MC26RD,YIDA-MC26N,YIDA-MC26P;
SEEHONG磁性開關YIDA-MC27系列有：YIDA-MC27R,YIDA-MC27RD,YIDA-MC27N,YIDA-MC27P;
SEEHONG磁性開關YIDA-MC28系列有：YIDA-MC28R,YIDA-MC28RD,YIDA-MC28N,YIDA-MC28P;
SEEHONG磁性開關YIDA-MC29系列有：YIDA-MC29R,YIDA-MC29RD,YIDA-MC29N,YIDA-MC29P;
SEEHONG磁性開關YIDA-MC30系列有：YIDA-MC30R,YIDA-MC30RD,YIDA-MC30N,YIDA-MC30P;
SEEHONG磁性開關YIDA-MC31系列有：YIDA-MC31R,YIDA-MC31RD,YIDA-MC31N,YIDA-MC31P;
SEEHONG磁性開關YIDA-MC32系列有：YIDA-MC32R,YIDA-MC32RD,YIDA-MC32N,YIDA-MC32P;
SEEHONG磁性開關YIDA-MC33系列有：YIDA-MC33R,YIDA-MC33RD,YIDA-MC33N,YIDA-MC33P;
SEEHONG 接近開關YIDA-MC34系列有：YIDA-MC34R,YIDA-MC34RD,YIDA-MC34N,YIDA-MC34P;
SEEHONG磁性開關YIDA-MC35系列有：YIDA-MC35R,YIDA-MC35RD,YIDA-MC35N,YIDA-MC35P;
SEEHONG磁性開關YIDA-MC36系列有：YIDA-MC36R,YIDA-MC36RD,YIDA-MC36N,YIDA-MC36P;
SEEHONG磁性開關YIDA-MC37系列有：YIDA-MC37R,YIDA-MC37RD,YIDA-MC37N,YIDA-MC37P;
SEEHONG磁性開關YIDA-MC38系列有：YIDA-MC38R,YIDA-MC38RD,YIDA-MC38N,YIDA-MC38P;
SEEHONG磁性開關YIDA-MC39系列有：YIDA-MC39R,YIDA-MC39RD,YIDA-MC39N,YIDA-MC39P;
SEEHONG磁性開關YIDA-MC40系列有：YIDA-MC40R,YIDA-MC40RV,YIDA-MC40RD,YIDA-MC40N,YIDA-MC40P;
SEEHONG磁性開關YIDA-MC41系列有：YIDA-MC41R,YIDA-MC41RV,YIDA-MC41RD,YIDA-MC41N,YIDA-MC41P;
SEEHONG磁性開關YIDA-MC42系列有：YIDA-MC42R,YIDA-MC42RV,YIDA-MC42RD,YIDA-MC42N,YIDA-MC42P;
SEEHONG磁性開關YIDA-MC43系列有：YIDA-MC43R,YIDA-MC43RV,YIDA-MC43RD,YIDA-MC43N,YIDA-MC43P;
SEEHONG磁性開關YIDA-MC44系列有：YIDA-MC44R,YIDA-MC44RV,YIDA-MC44RD,YIDA-MC44N,YIDA-MC44P;
SEEHONG磁性開關YIDA-MC50系列有：YIDA-MC50R,YIDA-MC50RV,YIDA-MC50RD,YIDA-MC50N,YIDA-MC50P;
SEEHONG磁性開關YIDA-MC51系列有：YIDA-MC51R,YIDA-MC51RV,YIDA-MC51RD,YIDA-MC51N,YIDA-MC51P;
SEEHONG磁性開關YIDA-MC70系列有：YIDA-MC70R,YIDA-MC70RV,YIDA-MC70RD,YIDA-MC70N,YIDA-MC70P;
SEEHONG磁性開關YIDA-MC71系列有：YIDA-MC71R,YIDA-MC71RV,YIDA-MC71RD,YIDA-MC71N,YIDA-MC71P;
SEEHONG磁性開關YIDA-MC72系列有：YIDA-MC72R,YIDA-MC72RD,YIDA-MC72RD,YIDA-MC72N,YIDA-MC72P;
液壓閥的連接方式，你知道有幾種嗎？
液壓系統中常常會看到各種各樣的液壓閥，那么液壓閥的連接方式有哪些呢？ 液壓閥的連接方式有管式連接、板式連接、集成塊式及疊加閥式等，下面就給大家來分別介紹一下。
1.管式連接
管式連接又稱螺紋式連接，它是將管式液壓閥用管接頭及油管連接起來，流量大的則用法蘭連接。其優點是系統中各閥間油液走向一目了然;缺點是結構分散，所占液壓系統空間較大，節路交錯，不便于裝拆、維修，管接頭處易漏油和進入空氣，而且易產生振動和噪聲.目前應用較少。
2.板式連接

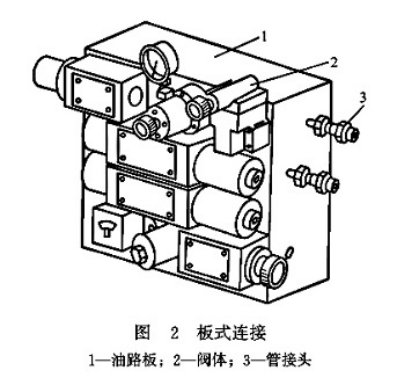

如圖2所示，板式連接是將板式液壓閥統一安裝在連接板上，采用的連接板有以下幾種形式。
(1)單層連接板 閥類元件裝在豎立的連接板的前面，閥間油路在板后用油管連接。這種連接板簡單，檢查油路方便，但板上管路多，裝拆不方便。
(2)雙層連接板 在兩板間加工出連接閥的油路.兩塊板再用粘接劑或螺釘固定在一起，工藝簡單，結構緊湊.但液壓站系統壓力高時易出現漏油串腔問題。
(3)整體連接板 整體連接板在一塊較厚的連接板中鉆孔或鑄孔作為連接油路，結構緊湊，油管少，工作可靠，但加工較困難，油路的壓力損失較大。
3.集成塊式

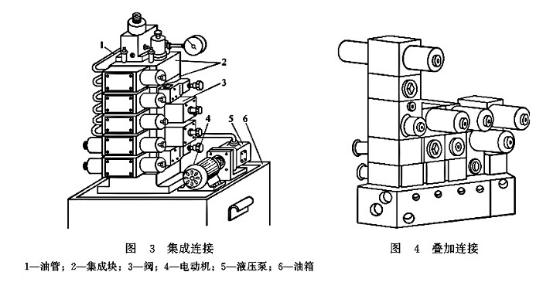

如圖3所示，集成塊式液壓裝置，將板式液壓元件安裝在集成塊周圍三個側面上，另外一個側面則安裝管接頭，通過油管連接到液壓執行元件。塊內由鉆孔形成的連接油路，塊與裝在其周圍的元件構成一個集成塊組，通常是可以完成一定功能的典型基本回路，如調壓回路塊、調速回路塊等.一個液壓系統往往由幾個集成塊組所組成，各集成塊與頂蓋、底板一起用長螺栓聯接起來。這種連接形式具有結構緊湊，油管少，可標準化，便于設計與制造等優點.因此它在各種液壓系統中得到了廣泛的應用。
4.疊加閥式
如圖4所示，疊加閥式是液壓裝置集成化的另外一種方式，每個疊加閥既起控制閥的作用，又起通道體的作用。因此，疊加閥式配置不需要另外的連接塊，只需用長螺栓直接將各疊加閥彼裝在底板塊上，即可組成所需的液壓系統。
本文由蘇州逐利機電整理發布，如需轉載請瀏覽來源及出處，原文地址：http://www.xiaoyi6.cn/kg/522.html
